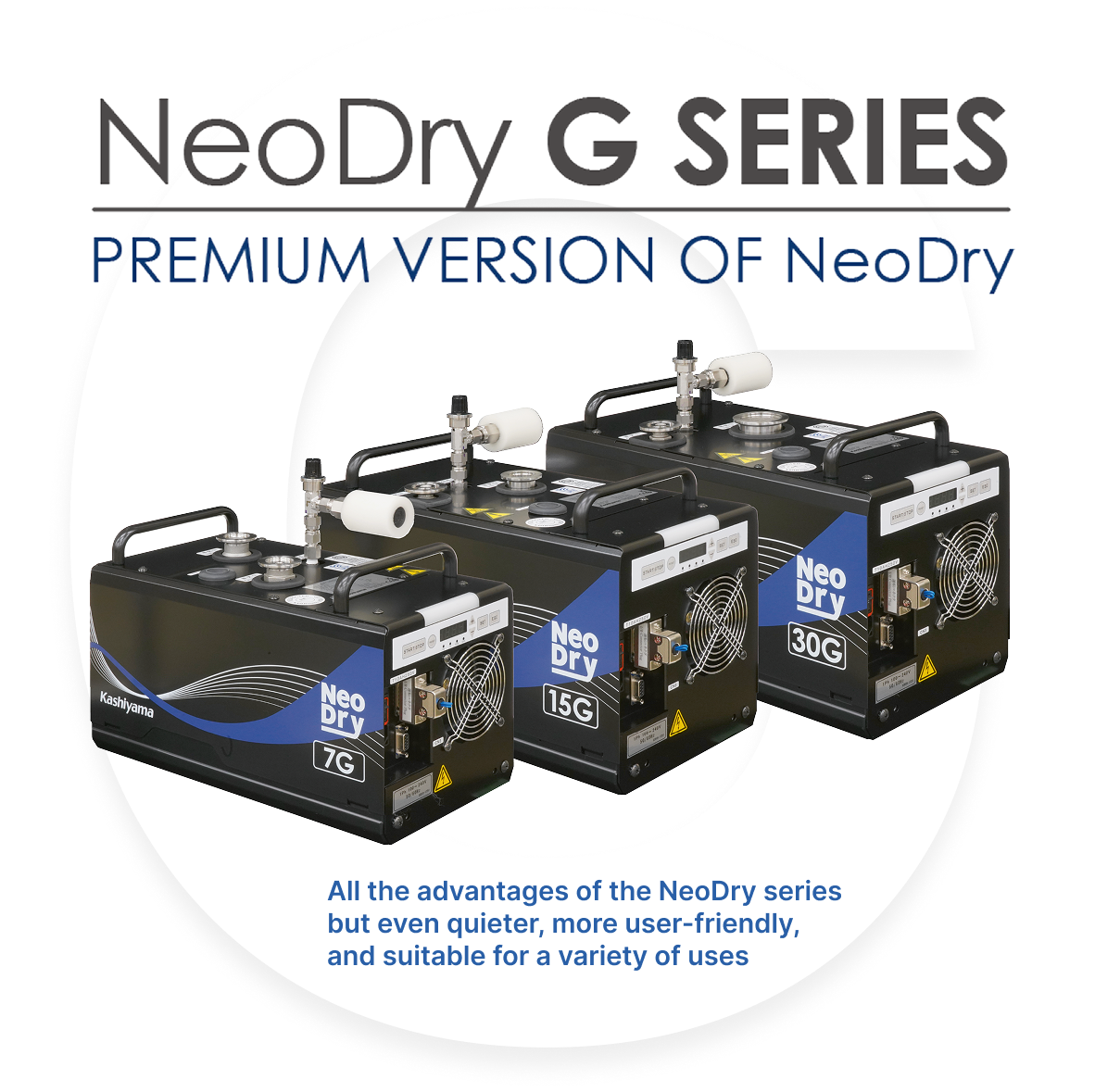

NeoDry G series = Premium version of the NeoDry

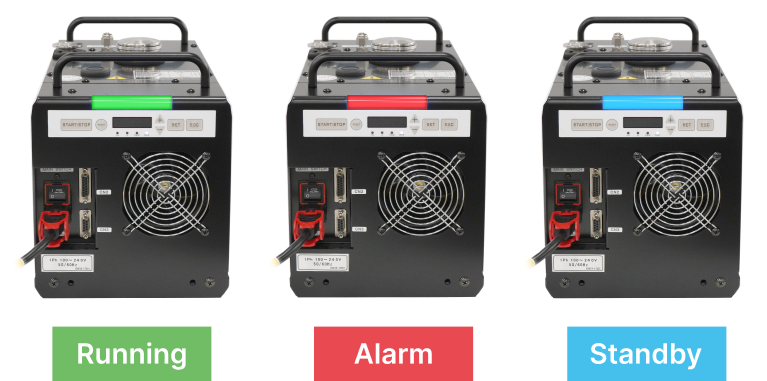

Sleek design
comes with LED indicator!

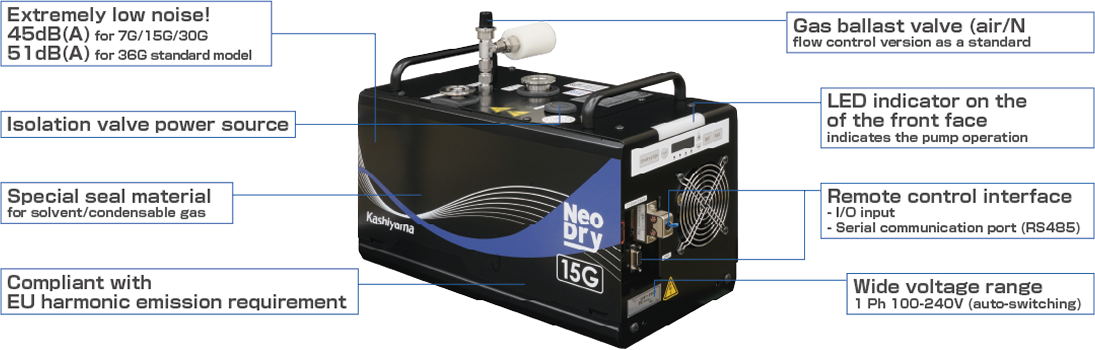

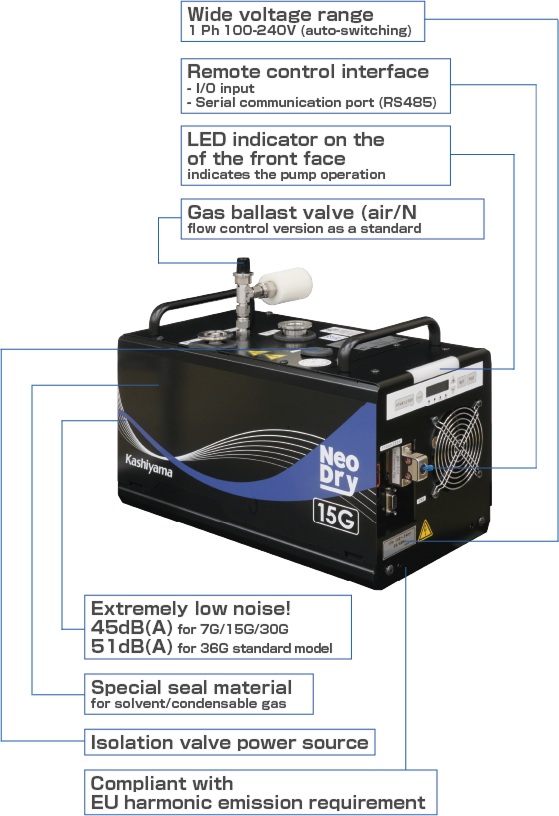

- Control panel and cable connections are all on the front face for easy operation
- Pump operating condition is indicated by an LED display
+10% water vapor tolerance
(vs NeoDry7E/5E/30E)
Comes with all the benefits of the conventional NeoDry E-series:
Clean multi-stage roots pump
No oil vapor, no particle generation, no tip-seal dust
An average of 6 years maintenance-free operation
for clean/dry gas usage based on our records
High vacuum performance at all pressure ranges
Continuous operation for atmospheric pressure
Optimal backing pump for UHV applications
Low base pressure, high compression for light gases
NeoDry G series = Premium version of the NeoDry
| Spec. / Products | NeoDry7G | NeoDry15G | NeoDry30G | NeoDry36G |
| Max. pumping speed m³/h (L/min) | 7 (110) | 15 (250) | 30 (500) | 36 (600) |
| Ultimate pressure (without gas ballast) mbar (Pa) | 0.05 (5.0) | 0.01 (1.0) | 0.01 (1.0) | 0.007 (0.7) |
| Supply voltage (50/60Hz) | Single phase, AC100-240V, auto-switching | |||
| Gas ballast mechanism | Standard accessory | |||
| Max. allowable moisture g/h | 135 | 275 | 275 | 350 |
| Typical noise value* dB(A) | 45 | 45 | 45 | 51 |
| Vibration μm p-p | ≦8 | ≦8 | ≦8 | ≦8 |
| Approx. weight kg | 19 | 22 | 24 | 51 |
| Inlet size | NW25 | NW25 | NW40 | NW40 |
| Outlet size | NW25 | NW25 | NW25 | NW25 |
| Power consumption at ultimate pressure kW | 0.28 | 0.34 | 0.34 | 0.55 |
| Dimensions (L×W×H) mm | 360x196x196 | 385x210x219 | 410x210x219 | 475x298x260 |
| Safety standard | NRTL(UL61010-, CAN/CSA C22.2 No. 61010-1), CE Marking, UKCA, KC | |||
*Reference value with inlet and gas ballast fully closed. Uncertainty, 3.0dB(A)
Application examples
Science
- Accelerators
- Beam lines
- Glove boxes
- Microbiology
- Space applications
- TMP backing pumps etc.
Analytics Instruments
- Leak detection
- Low temperature analysis
- Mass spectrographs
- RGAs
- Scanning electron microscopes
- Transmission electron microscopes etc.
Coating Technology
- Chemical vapor deposition
- Optical coating
- Physical vapor deposition
- Plasma cleaning
- Sputter deposition
- Thermal processes etc.
General Industry
- Air conditioning evacuation
- Battery electrode drying
- Freeze dryers
- Solvent pumping
- Vacuum laminators
- Vapor pumping etc.
S-P curves
Accessories
| Item | Applicable for | Part number |
| In-line pipe type silencer SR-60(horizontal) | All | 27910-22850 |
| In-line pipe type silencer SR-28-2(vertical) | All | 27910-22101 |
| Filter type silencer EFS-11 | 7G and 15G | 27102-10390 |
| Filter type silencer EFS00001002 | 30G | 27102-10410 |
- Because we are constantly working to improve performance and upgrade our products, specifications and diagrammatic representations in this catalog may change without notice.
- Products displayed in this catalog must be approved for export in accordance with the Foreign Exchange and Foreign Trade Control Act. Before placing an export order, please contact our Business Department.
