MU-XE/GX Series

Energy Saving, Compact & Water cooled Dry Pump

Key features

EXCELLENT ENERGY SAVINGS OWING TO THE UNIQUE ROTOR DESIGN, EFFICIENT INVERTER AND SYNCHRONOUS MOTOR EXTREMELY SMALL FOOT PRINT FOR BETTER USABILITY AT CUSTOMER APPLICATION APPLICABLE FOR VARIOUS TOOLS/EQUIPMENTS BEST FOR CLEAN PUMPING SUCH AS L/L AND TRANSFER CHAMBER ETCEXCELLENT ENERGY SAVINGS OWING TO THE UNIQUE ROTOR DESIGN, EFFICIENT INVERTER AND SYNCHRONOUS MOTOR EXTREMELY SMALL FOOT PRINT FOR BETTER USABILITY AT CUSTOMER APPLICATION APPLICABLE FOR VARIOUS TOOLS/EQUIPMENTS BEST FOR CLEAN PUMPING SUCH AS L/L AND TRANSFER CHAMBER ETC

Specifications

Spec. / ModelMU100XEMU180GX*4MU300XEMU600XEMU1200XE
Max. pumping speed *1100m3/h
(1,660L/min)		180m3/h
(3,000L/min)		300m3/h
(5,000L/min)		600m3/h
(10,000L/min)		1,200m3/h
(20,000L/min)
Ultimate pressure *10.015mbar
(1.5Pa)		0.005mbar
(0.5Pa)
Supply voltage
(50/60Hz)		200V model
400V model		3Phase, AC200～220V
3Phase, AC380～440V
Cooling water [L/min]1.5≧2.0≧
Power consumption [kW] *20.250.50.450.50.6
Weight [kg]200V model
400V model		60
63		95
100		100
114		120
126		165
165
Inlet sizeNW50NW80NW100
Outlet sizeW25NW40
Dimensions [mm]
W×H×L *3		200V model
400V model		230×275×450
230×345×450		280×299×550
280×325×570		230×520×450
230×575×530		230×520×530
230×575×530		275×580×625
275×580×655
*1) Value without N2 purge. *2) Approximate value at ultimate pressure. *3) Package dimensions. Please contact us for further details. *4) The Products name for 400V model is MU180GX4
* Spec. & name of products are subject to change without prior notice.
* Contact us about large capacity pumps.

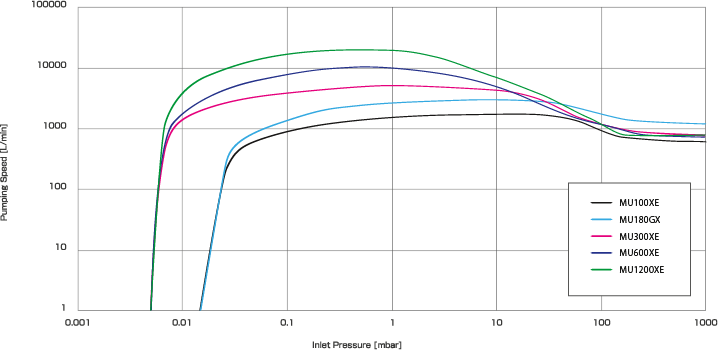

SP Curves

MU-X Series S-P Curve

  1. Because we are constantly working to improve performance and upgrade our products, specifications and diagrammatic representations in this catalog may change without notice.
  2. Products displayed in this catalog must be approved for export in accordance with the Foreign Exchange and Foreign Trade Control Act. Before placing an export order, please contact our Business Department.
